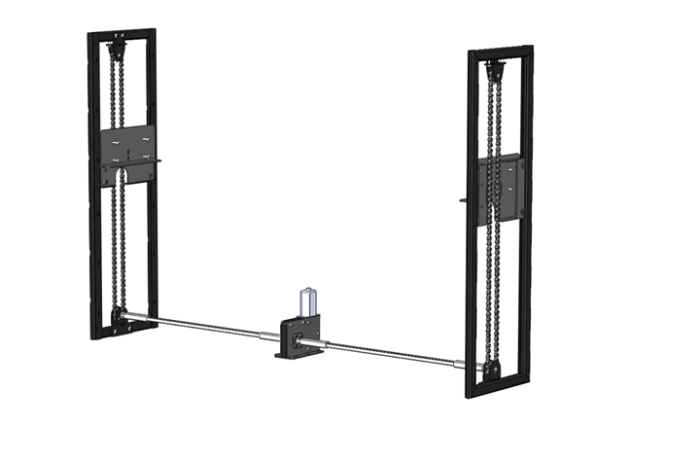

• Motorized bracket RDL-S

    Motorized arm RDL-S with the extended movable platform for linear movement of objects in a vertical plane with mechanical synchronization recovery.

    Maximum loading weight: 80 kg.

    The maximum width of the float: up to 2000 mm.

    Speed: 35 ± 3 mm / sec Power: ̴ 220V / 12V, 2-10A (depending on load)

    Management: The following types of control:

    • - Push-button control (opening and closing with intermediate stops);

    • - Push-button control (opening and closing without intermediate stops);

    • - Control via radio control (opening and closing with intermediate stops);

    • - Control via radio control (opening and closing without intermediate stops);

    • - Combined control - push-button + radio transmitter to various embodiments of movement;

    • - Rule on the system "smart house" and radio control (or button) by the system of the "dry contact";

    Note: The control type is selected when ordering the arm and bracket not included in the price.

    Dimensions: Bracket with a stroke length of 612 mm: guide: height - 800 mm, width - 250 mm depth - 22 mm (max 58 mm).

    electric height - 162 mm, width - 58 mm depth - 143 mm.

    Note: different options with different stroke lengths.

    Dimensions custom brackets: Bracket length = 138 mm stroke length, height and depth remain as base.

    Price: 345 euros (non-standard size + 15-20%).

    (In brackets the cost does not include the power supply and controls)

    RDL-S 1RDL-S 2
